FRP Steel Wire Fiber Drop Cable , 1 KM-5 KM Black Fiber Optic Cable

Name: FRP Steel Wire Fiber Drop Cable 1 KM5 KM Black Fiber Optic Cable
Brand: SINOHONE
Price: 0.35 USD

Quality FRP Steel Wire Fiber Drop Cable , 1 KM-5 KM Black Fiber Optic Cable for sale

Brand Name : SINOHONE

Model Number : Outdoor Fiber Optic Cable

Certification : ISO, CE, UL, ROHS

Place of Origin : Sichuan, China

MOQ : 1 METER

Price : USD 0.35 ~ 3.6 / METERS

Payment Terms : Western Union, T/T, D/P, D/A, L/C

Supply Ability : 1000 Kilometer / Kilometers per Week

Delivery Time : 5 days

Packaging Details : 2km per wooden reel

Operating Temperature : -40~+70℃

Color : Black

Application : UL, RoHS, ISO9001, SGS

Product name : FRP Steel Wire Drop Outdoor Fiber Optic Cable

Life time : More than 20 years

Oem factory : Yes

Contact Now

FRP Steel Wire Drop Outdoor Fiber Optic Cable Factory 1KM 2KM 3KM 5 KM In Roll

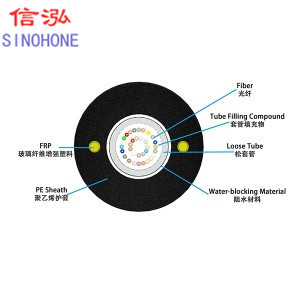

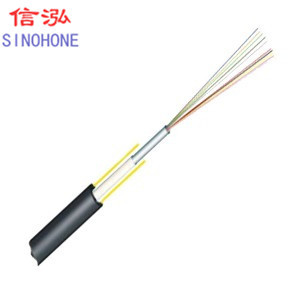

The fibers, 250μm, are positioned in a loose tube made of a high modulus plastic. The tubes are filled with a water-resistant filling compound. Over the tube. water-blocking material is applied to keep the cable watertight. Two parallel Fiber Reinforced Plastics (FRP) are placed at the two side. The cable is completed with a polyethylene (PE) sheath.

Features

Good mechanical and temperature performance;
High strength loose tube that is hydrolysis resistant;
Special tube filling compound ensure a critical protection of fiber;
Two parallel FRPs ensure tensile strength;
PE sheath protects cable from ultraviolet radiation;
Small diameter, light weight and friendly installation;
Long delivery length;
Standards: GYFXY cable complies with Standard YD/T 769-2003.

Cable Type	Fiber Count	Cable Weight	Tensile	Crush Resistance	Bending Radius
		kg/km	Strength Long/Short Term N	Long/Short Term N/100mm	Static /Dynamic mm
(Increased by 2 fibers)
GYFXY	2~24	100	400/1000	300/1000	10D/20D

	G.652D	50/125μm	62.5/125μm
Attenuation	@850nm		≤3.0 dB/km	≤3.0 dB/km
(+20ºC)	@1300nm		≤1.0 dB/km	≤1.0 dB/km
	@1310nm	≤0.36 dB/km
	@1550nm	≤0.22 dB/km
Bandwidth (Class A)	@850nm		≥500 MHz·km	≥200 MHz·km
	@1300nm		≥1000 MHz·km	≥600 MHz·km
Numerical Aperture			0.200±0.015NA	0.275±0.015NA
Cable Cut-off Wavelengthλcc		≤1260nm
