Outdoor Underwater Armored Multimode Fiber Optic Cable SWA 48 96 144 Cores

Name: Outdoor Underwater Armored Multimode Fiber Optic Cable SWA 48 96 144 Cores
Brand: SINOHONE
Price: 1 USD

Quality Outdoor Underwater Armored Multimode Fiber Optic Cable SWA 48 96 144 Cores for sale

Brand Name : SINOHONE

Model Number : GYFXY

Certification : CPR FCC CE RoHS ISO9001

Place of Origin : Sichuan, China

MOQ : 2000 meters

Price : USD $0.38~$0.58 / meter

Payment Terms : L/C, D/P, T/T, D/A, Western Union, MoneyGram

Supply Ability : 500000 meters per month

Delivery Time : 5-8 work days

Packaging Details : Standard packing in sealed box or according to customers' requirements

Product Name : Uni-tube Cable

Structure : Uni-tube

Length : 2km or customized length

Oem : Available

Installation : Aerial, Duct

Sheath material : PE

Strength member : Two steel wire

Contact Now

Outdoor Underwater Armored Fiber Optic Cable SWA 48 96 144 Cores Cable

Description:

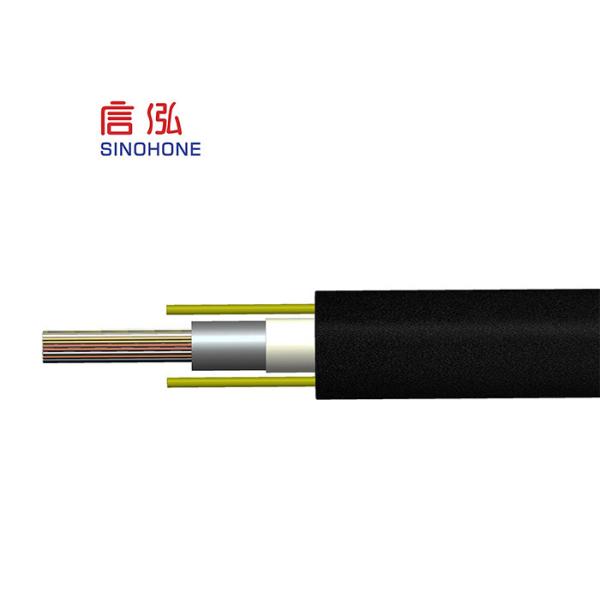

The 250um fibers are positioned in a loose tube made of a high modulus plastic. The tubes are filled with a water-resistant filling compound. Water-blocking material is applied over the tube to keep the cable waterproof. There are also two parallel fiber rein-forced plastics (FRP) are placed at the two sides. The cable is completed with a polyethylene PE sheath. Single-mode or multi-mode fibers are positioned in the center of loose tube in the GYFXY cable, and FRP as strength member.

Structures:

Optical fiber
Full-filled jelly
PBT loose tube
Glass yarn
Water-blocking tape
Rip cords
FRP center strengthening
Outer sheath

Features

Good mechanical and temperature performance;
High strength loose tube that is hydrolysis resistant;
Special tube filling compound ensure a critical protection of fiber;
Two parallel FRPs ensure tensile strength;
PE sheath protects cable from ultraviolet radiation;
Small diameter, light weight and friendly installation;
Long delivery length;
Standards: GYFXY cable complies with Standard YD/T 769-2003.

Fiber Type and Properties

Item		Unit	Specification
Item		Unit	G. 652
Mode field diameter	1310nm	mm	9.2 ± 0.4
Mode field diameter	1550nm	mm	10.4 ± 0.8
Cladding diameter		mm	125.0 ± 1
Cladding non-circularity		%	£1.0
Core/cladding concentricity error		mm	£0.5
Coating diameter		mm	242 ± 7
Coating/cladding concentricity error		mm	£12
Cable cut-off wavelength		nm	£ 1260
Attenuation Coefficient	1310nm	dB/km	£0.36
Attenuation Coefficient	1550nm	dB/km	£0.22
Proof stress level		kpsi	≥100

Dimesions of Cable Constructiuons

Fib er cou nt	Struc ture	Fibe rs per tube	Loose tube diameter (mm)	CSM diameter /pad diameter (mm)	Thickne ss of Inner jacket (mm)	Thickne ss of outer jacket (mm)	Cable diameter (mm)	Cable weigh (kg/km )
48	1+5	12	2.0±0.1	1.5/1.5	1.0±0.1	1.9±0.1	13.1±0.5	298
96	1+8	12	2.0±0.1	2.6/3.5	1.0±0.1	1.9±0.1	15.1±0.5	385
144	1+12	12	2.0±0.1	3.0/6.3	1.0±0.1	1.9±0.1	17.9±0.5	513

Cable Performance

Item		Parameters
Loose tube	Material	PBT
Loose tube	Color	All colors display
Filler	Material	PE
Filler	Color	Black
CSM	Material	FRP
Inner jacket	Material	MDPE
Inner jacket	Color	Black
Steel wire armoured	Material	Galvanized steel wire
Outer jacket	Material	LSZH
Outer jacket	Color	Black
Min. bending radius	Static	12.5times cable diameter
Min. bending radius	Dynamic	25times cable diameter
Tensile performance	Short term	8000N
Crush	Short term	5000N/100mm

Environmental Performance

Item	Standard	Parameters
Operation temperature	IEC 60794-1-2 F1	-20℃～+60℃

Drum

Cable type

Drum

Height (mm)

Width (mm)

Inner diameter

(mm)

Lengt h(km)

Drum type

GYFTZY33-48

1100

760

400

Plywood

					wood drum
GYFTZY33-96	1300	760	500	2	Iron wood drum
GYFTZY33-144	1400	1000	650	2	Iron wood drum

Outdoor Underwater Armored Multimode Fiber Optic Cable SWA 48 96 144 Cores
